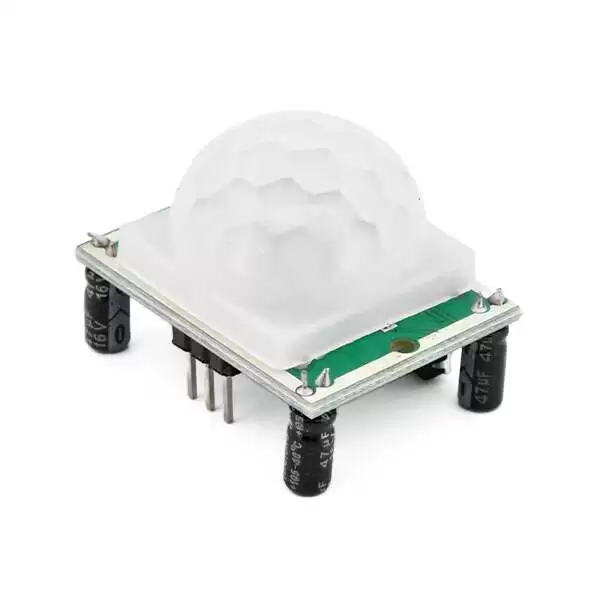

HC-SR501 PIR Motion Sensor Module
Features:
- Motion Detection: Utilizes a pyroelectric sensor to detect motion by measuring changes in infrared radiation levels.
- Adjustable Sensitivity and Delay: Features two variable resistors to fine-tune sensitivity and output delay time.
- Low Power Consumption: Operates efficiently with minimal energy usage, suitable for battery-powered applications.
- Easy Integration: Compatible with various microcontrollers like Arduino, Raspberry Pi, and others, facilitating straightforward integration into projects.
Specifications:
- Supply voltage of DC: 4.5 V to 20 V
- Power consumption in standby mode: 50 uA
- Output voltage: 3,3 V
- Measuring range: max. 7M
- Viewing angle: up to 120 °
- Digital output:
- High status – object detected
- Low status – no object
- The dimensions of the base of module: 33 x 24 mm
- Bowl diameter: 23 mm
- Bowl height: 18 mm
- Total height: 25 mm (with elements mounted in the bottom of the board)
